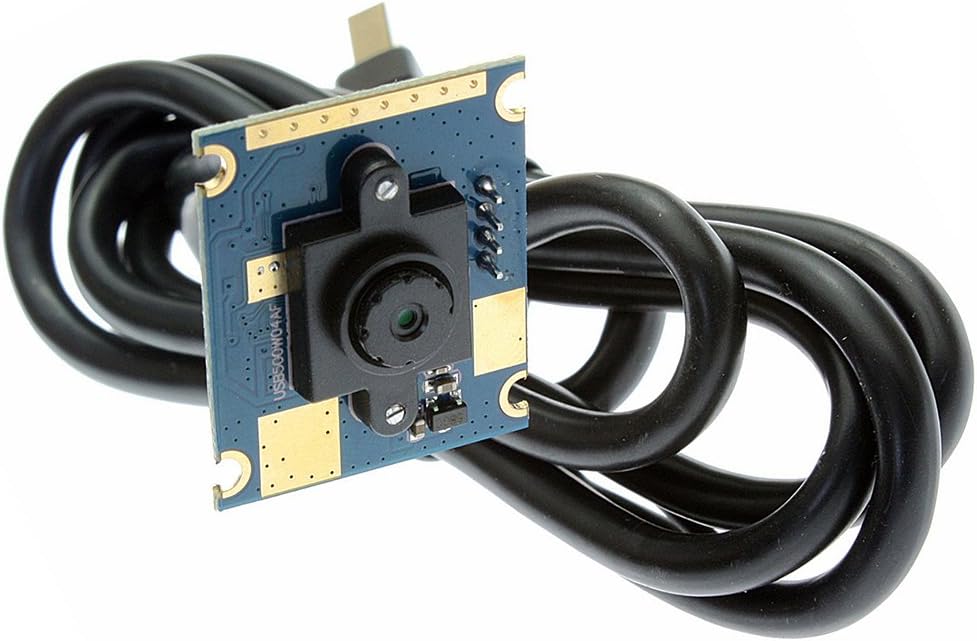

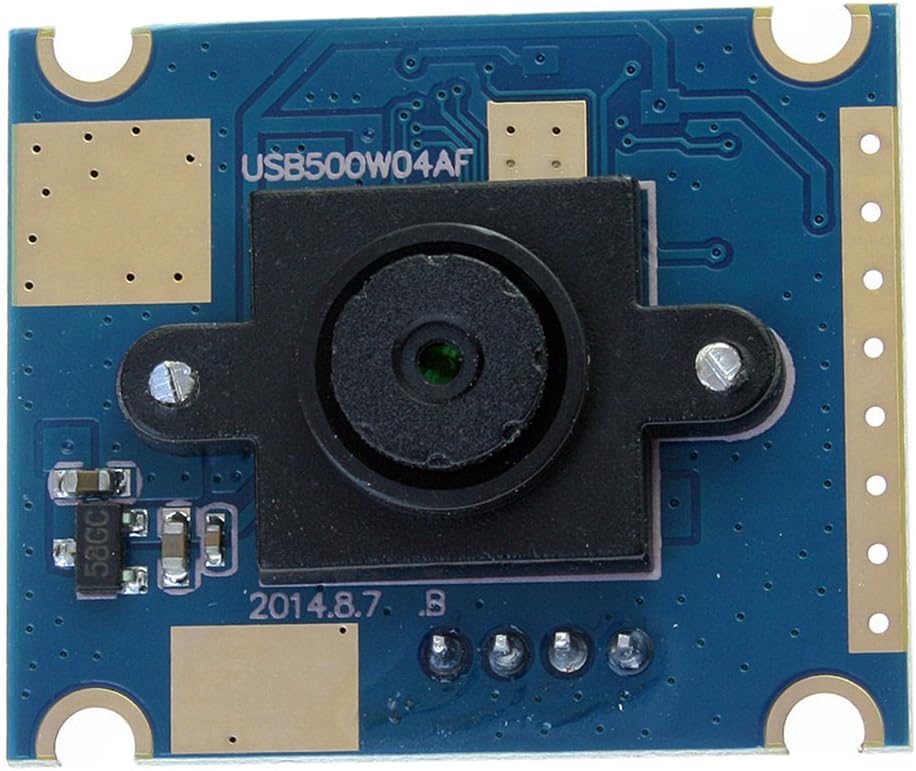

ELP 5mp 60degree Fixed Lens USB Camera with OV5640 Sensor for Linux/Android/mac/Windows PC Webcam USB2.0 UVC Vide Camera Module Opencv Raspberry Pi USB with Cameras for Computer, PC, Laptop
Product details
| Management number | 216133618 | Release Date | 2026/04/19 | List Price | $19.60 | Model Number | 216133618 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Why we choose MJPEG USB Camera? Choose "MJPEG" final purpose is to reduce data stream, improve the video frame, so that the video will more smooth and occupy less bandwidth. Such as 1megapixel common camera,YUV format only have 10fps，while MJPEG usb camera can up to 30fps. Most Linux USB port device is USB2.0, becuase bandwidth limited, can not receive YUV data stream, so that need to choose the MJPEG data stream. Common USB PC camera do not have MJPEG DSP, even those support MJPEG but can not work with USB2.0 yet. Product Name:ELP-USB500W04AF-L60 Sensor： OV5640 (1/4”) Max. Resolution： 2592 (H) *1944 (V) Sensitivity：600mV/Lux-sec Pixel Size：1.4μm x1.4μm Image area： 3673.6μmx2738.4μm Maximum Image Transfer Rate： 2592x1944@ 15fps MJPEG / 2048x1536@ 15fps MJPEG 1600x1200@ 15fps MJPEG / 1920x1080@ 15fps MJPEG 1280x1024@15fps MJPEG/ 1280x720@ 30fps MJPEG 1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG 640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG Camera Board Assembly technique： SMT (ROSH) FocusManual Resolution： 600LW/PH (Center) interface： USB 2.0 High Speed protocol： USB Video Class（UVC S/N Ratio：36dB Dynamic Range： 68dB Shutter： Rolling shutter/ frame exposure Package： CSP, Bare Die AGC/AEC/AWB/ABF： Auto Output Formats： YUYV/MJPEG Adjustable parameter： Brightness Contrast Hue Saturation Sharpness Gamma White Balance Exposure Focus Package： LQFN-40pin Lens Parameter Size: 1/4, Iris: F2.8, Focus: 3.2mm, FOV: 65Degree Relative Illumination (Sensor): 70% IR Filter: 650±10nm
- 60 degree fixed megapixel lens usb camera
- Super small outline and thin profile for embedded
- Auto explsure and auto white balance
- 5Megapixel Autofous USB Webcam up to 2592x1944 high HD resolution
- compact industrial camera solution for any Android/Linux/Mac/Windows PC with USB ports
| UPC | 711978711828 |
|---|---|
| Zoom | Digital |
| Brand | ELP |
| Features | autofocus |
| Lens Type | Prime |
| Focus Type | Manual Focus |
| Model Name | ELP-USB500W04AF-L60 5mp 60degree usb camera for computer |
| File Format | mjpeg,yuv |
| Form Factor | Compact |
| Item Weight | 2.4 ounces |
| Screen Size | 4 Inches |
| Sensor Type | CMOS |
| Manufacturer | ailipu Technology Co.Ltd |
| Model Number | ELP-USB500W04AF-L60 |
| BuiltIn Media | Camera Body, USB Cable, User Manual |
| Camcorder Type | Video Camera |
| Shooting Modes | Automatic |
| Antenna Location | Spy |
| Maximum Aperture | 2.8 f |
| Operating System | Linux |
| Video Resolution | 1080p |
| Flash Memory Type | SD |
| Compatible Devices | Laptop, Personal Computer, Smartphone, Tablet |
| Image Aspect Ratio | 4:3 |
| Maximum Focal Length | 200000 Millimeters |
| Video Capture Format | MJPEG |
| Warranty Description | 30days free return and replacements |
| Wireless Compability | Infrared |
| Are Batteries Included | No |
| Supported Audio Format | PCM |
| Supported Image Format | MJPEG, YUYV |
| Water Resistance Level | Not Water Resistant |
| Connectivity Technology | Wired |
| Has Image Stabilization | No |
| Display Resolution Maximum | 1080p HD |
| Effective Still Resolution | 5 MP |
| Effective Video Resolution | 1944 Pixels |
| Flash Memory Video Speed Class | V60 |
| Flash Memory Bus Interface Type | USB |
